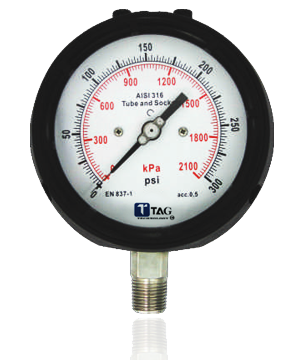

SG127 SERIES Safety Pattern Case Pressure Gauge

over view :
> Safety pattern case pressure gauge
> Solid front (Baffle wall) with full blow out back
> Accuracy class 0.5
> Dial size 127 mm or 4?”
> Pressure range 0..1, -1..+24 to 0..1000 bar
> Bottom and lower back mounting
> Conn. size G1/4, G1/2"A or NPT
> Index protection IP65
> Ambient/Working temp. -20?..+60?C/Max.+18
> Design material :
Casing- Polypropylene
Wetted parts-Stainless steel
Window-Safety laminated glass
