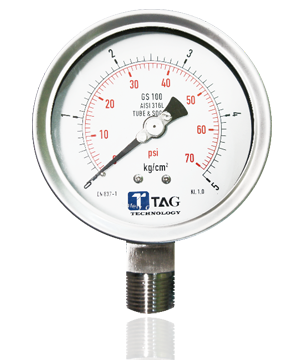

GS100 SERIES:All Stainless Steel Pressure Gauge

over view :
> All stainless steel pressure gauge, Full Option
> Accuracy class 1.6 (63mm), 1.0 (100..150mm)
> Dial size 63, 100 and 150 mm
> Pressure range -1..0, -1..+24 to 0..1600 bar
> Bottom, back, wall, panel and U-clamp mount
> Conn. size G1/4", G1/2"A or NPT
> Index protection IP65
> Ambient/Working temp. -30?..+70?C/Max. +180?C
> Design material :
Wetted parts - Stainless steel
Window - Laminated safety glass
Pointer - Adjustable scale pointer
